High-quality wire produced through a precision drawing process. Available in STS 304 series (304/304L/304H/304M/304N), STS 316 series (316/316L/316N), STS 302/321/317/202M, FCH, and Brass — serving construction, food, medical, and marine industries.
Materials
The most versatile austenitic stainless steel. Excellent corrosion resistance and workability for construction, food, and general industry.
Low-carbon STS 304. Resistant to sensitization after welding, used in medical and chemical equipment.
High-carbon STS 304 for elevated-temperature use. Superior high-temperature strength for heat-resistant components.
Modified STS 304 with improved work-hardening. Better cold-drawing performance, ideal for fine wire production.
Nitrogen-added STS 304. Higher yield and tensile strength than standard 304, suited for high-strength wire applications.
Molybdenum-bearing grade with enhanced pitting corrosion resistance. Ideal for marine, medical, and chemical environments.
Low-carbon STS 316. Excellent weldability and sensitization resistance, widely used in medical and food equipment.
Nitrogen-added STS 316. Combines Mo-based corrosion resistance with nitrogen-enhanced strength for premium applications.
Higher carbon content than 304 for faster work-hardening. Used for high-tensile springs and precision components.
Titanium-stabilized austenitic grade. Resists sensitization for superior corrosion resistance in high-temperature and welded structures.
Higher Mo content than 316. Outstanding corrosion resistance in aggressive environments with chlorides and sulfuric acid.
Low-nickel austenitic grade with Mn and N substituting Ni. Cost-competitive for general corrosion-resistant applications.
High-carbon hardened wire. High tensile strength and wear resistance for springs and precision machine parts.
Copper-zinc alloy wire. Excellent electrical conductivity for brushes, electrical components, and decorative use.
Diameter Specifications
| Diameter (mm) | S.G. 7.93 — STS 304 series · 302 · 321 · 202M · FCH | S.G. 7.98 — STS 316 series · 317 | ||
|---|---|---|---|---|
| Unit Weight (g/m) | Length (m/kg) | Unit Weight (g/m) | Length (m/kg) | |
| 0.07 | 0.030 | 32,767 | 0.031 | 32,563 |
| 0.08 | 0.040 | 25,087 | 0.040 | 24,928 |
| 0.09 | 0.050 | 19,822 | 0.051 | 19,698 |
| 0.10 | 0.062 | 16,056 | 0.063 | 15,956 |
| 0.12 | 0.090 | 11,150 | 0.090 | 11,081 |
| 0.14 | 0.122 | 8,192 | 0.123 | 8,141 |
| 0.16 | 0.159 | 6,272 | 0.160 | 6,233 |
| 0.18 | 0.202 | 4,956 | 0.203 | 4,925 |
| 0.20 | 0.249 | 4,014 | 0.251 | 3,989 |
| 0.25 | 0.389 | 2,569 | 0.392 | 2,553 |
| 0.30 | 0.561 | 1,784 | 0.564 | 1,773 |
| 0.35 | 0.763 | 1,310 | 0.768 | 1,302 |
| 0.40 | 0.997 | 1,004 | 1.003 | 997 |
| 0.45 | 1.261 | 793 | 1.269 | 788 |
| 0.50 | 1.557 | 642 | 1.567 | 638 |
※ The above range represents our main production capability. Other sizes are available. Tensile strength varies by material and temper — please inquire.
High-strength rope stranded from stainless wire. Available in 1×3 through 7×7 constructions for construction, marine, industrial equipment, and medical device applications.
Constructions & Available Diameters
| Construction | Available Diameter (mm) |
|---|---|
| 1×3 | 0.14 ~ 1.00 |
| 1×5 | 0.21 ~ 1.50 |
| 1×7 | 0.21 ~ 1.50 |
| 1×19 | 0.35 ~ 2.50 |
| 7×7 | 0.63 ~ 4.50 |
※ The above range represents our main production capability. Other sizes are available upon request.

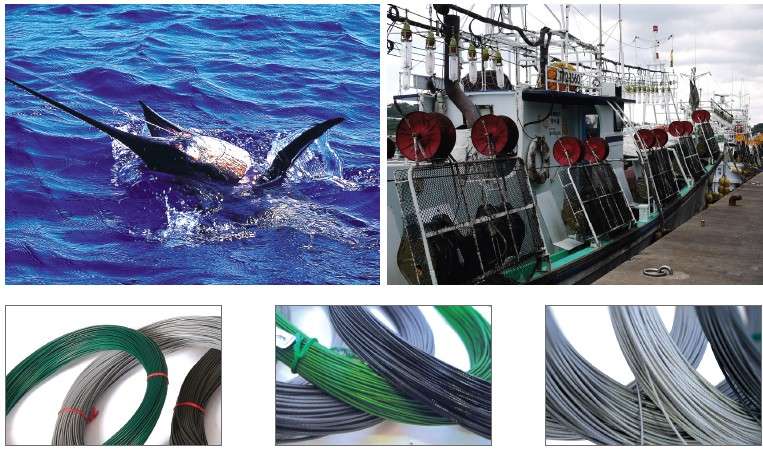

Stainless rope with nylon coating. Provides improved appearance, ease of handling, corrosion resistance, and electrical insulation. Available in transparent or colored coating for interior design, safety fencing, and marine applications.
Coating Type
Superior strength and wear resistance. Transparent coating preserves the natural luster of the wire. Also available in various colors.

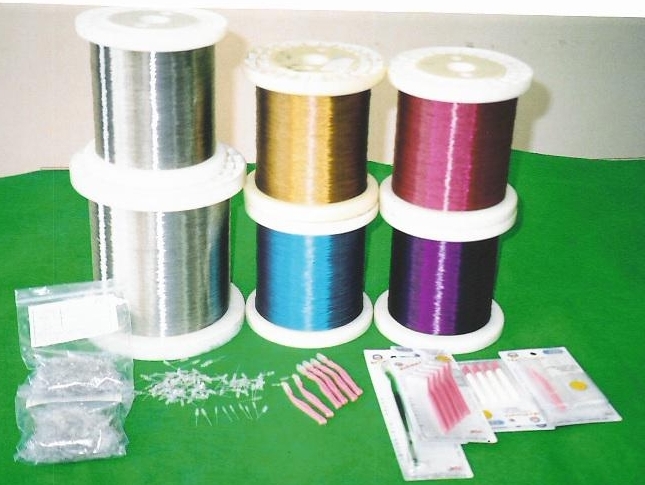

Duckheung Special Ind. specializes in wire for interdental brushes. We supply two product lines — our proprietary DH-Wire and the high-tensile 302 HT — to interdental brush manufacturers worldwide.
DH-Wire — Proprietary Specialty Wire
A proprietary specialty wire developed by Duckheung Special Ind. in 2007 exclusively for interdental brushes. Not a standard steel grade — independently developed in-house using a proprietary stainless alloy. Features a high tensile strength of 1000 MPa and exceptional stiffness that resists bending.
DH-Wire Key Specifications
302 HT — High-Carbon High-Tensile Wire
STS 302 high-carbon high-tensile wire. Excellent work-hardening characteristics deliver high tensile strength after cold drawing, making it a widely used and proven material for interdental brush core wire. Offers superior corrosion resistance and consistent production quality.
302 HT Key Specifications
Applications
Core material for interdental brushes. Maintains shape through repeated use.
Core wire for mascara brush wands. Excellent elasticity and durability.
Wire for medical device and endoscope cleaning brushes. Meets strict hygiene and corrosion resistance requirements.
Diameter Specifications
| Diameter (mm) | Unit Weight (g/m) | Length (m/kg) |
|---|---|---|
| 0.18 | 0.202 | 4,956 |
| 0.20 | 0.249 | 4,014 |
| 0.21 | 0.275 | 3,641 |
| 0.22 | 0.301 | 3,317 |
| 0.23 | 0.329 | 3,035 |
| 0.24 | 0.359 | 2,787 |
| 0.25 | 0.389 | 2,569 |
| 0.27 | 0.454 | 2,202 |
| 0.28 | 0.488 | 2,048 |
| 0.30 | 0.561 | 1,784 |
| 0.32 | 0.638 | 1,568 |
| 0.33 | 0.678 | 1,474 |
| 0.35 | 0.763 | 1,311 |
※ The above range represents our main production capability. Other sizes are available upon request.
